Product Description

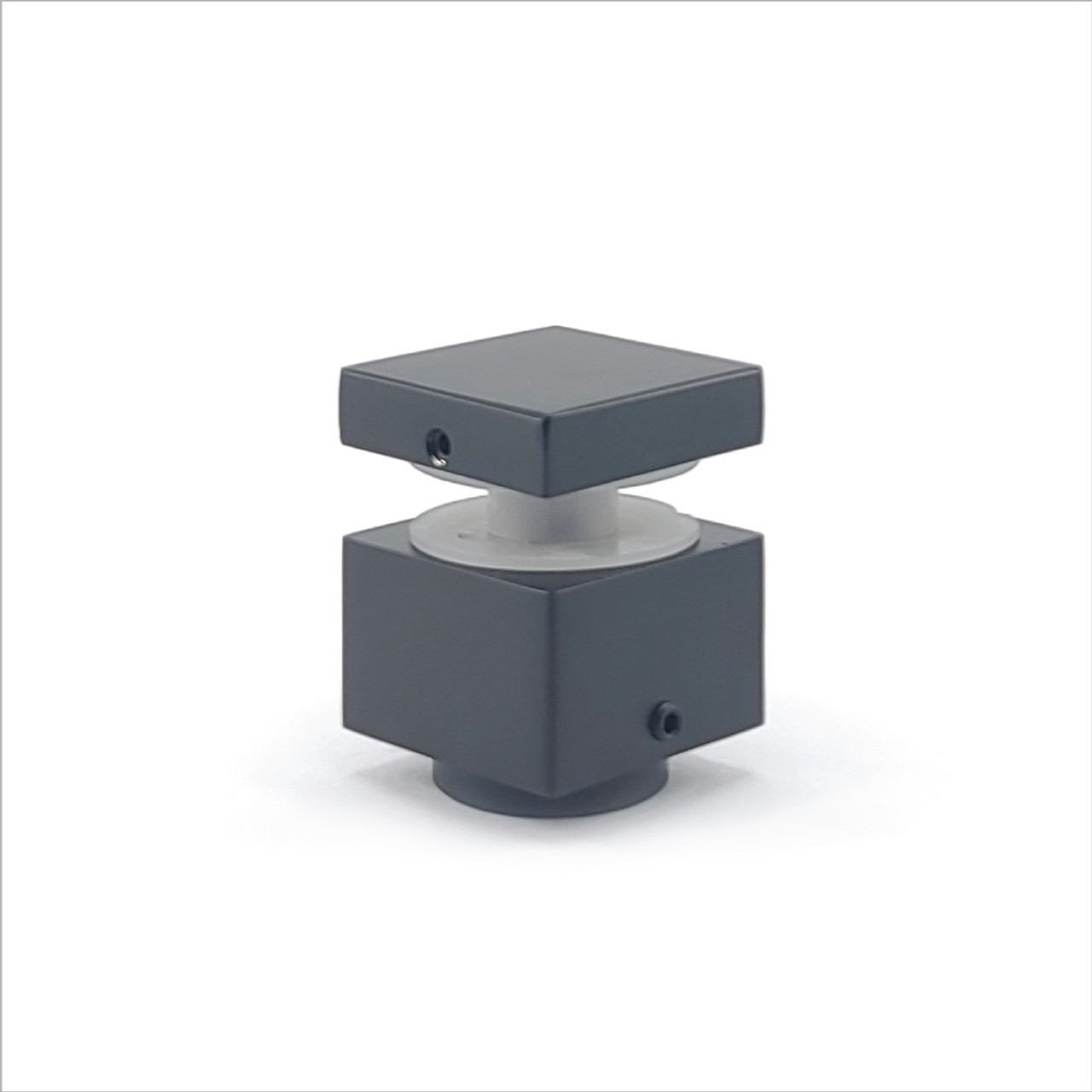

SO68122212A STAND OFF ADJUSTABLE SQUARE 2 1/4" X 2 1/4"
ADJUSTABLE SQUARE STANDOFF 2 1/4" DIA & HEIGHT FROM 1 3/8" TO 2" BRUSHED STAINLESS 316
*Comes with 1 alen key to tighten the Cap.
Thrush Resistance – Class 200 Kg.
1.1 SYSTEM DESCRIPTION
A. Performance Requirements for Guard Assembly:
1. Support distributed load of 50 pounds per linear foot (0.73kN/M), applied horizontally at right angles in any direction to the top/grab rail.
2. Support concentrated horizontal load of 200 pounds (0.89kN), applied in any direction at any point along top/grab rail.
3. 50 lbs (0.22kN) on 1 sf (0.093m2) perpendicular to guard at any location
4. Wind loads 25 psf or as otherwise specified.
5. These loads need not to be assumed to act concurrently.
6. Maximum deflection at top of glass is height/24.
1.2 QUALITY ASSURANCE
A. Components and installation are to be in accordance with state and local building codes.
B. All glass to be fabricated by an approved tempered to a tolerance of 1/32” for the light size and hole locations.
1.3 DELIVERY, STORAGE, AND HANDLING
A. Deliver materials properly protected against damage to finished surfaces during transit.
B. Inspect materials upon delivery for damage. Unless minor defects can be made to meet the Architect’s specifications and satisfaction, damaged parts shall be removed and replaced.
C. Store materials at building site under cover in a dry location.
FOR CEMENT |
ANCHOR BOLT |
M12 x 126 MM |
FOR WOOD |
LAG BOLT |
M12 x 140 MM |
THRUSH RESISTANCE |
GLASS (TEMPERED/LAMINATED) |
ADJUSTABLE STAND OFF FITTINGS/EACH GLASS |
200 Kg |
12 ~ 19 MM. |
6/L Glass Max 60” (1524mm) |
