Product Description

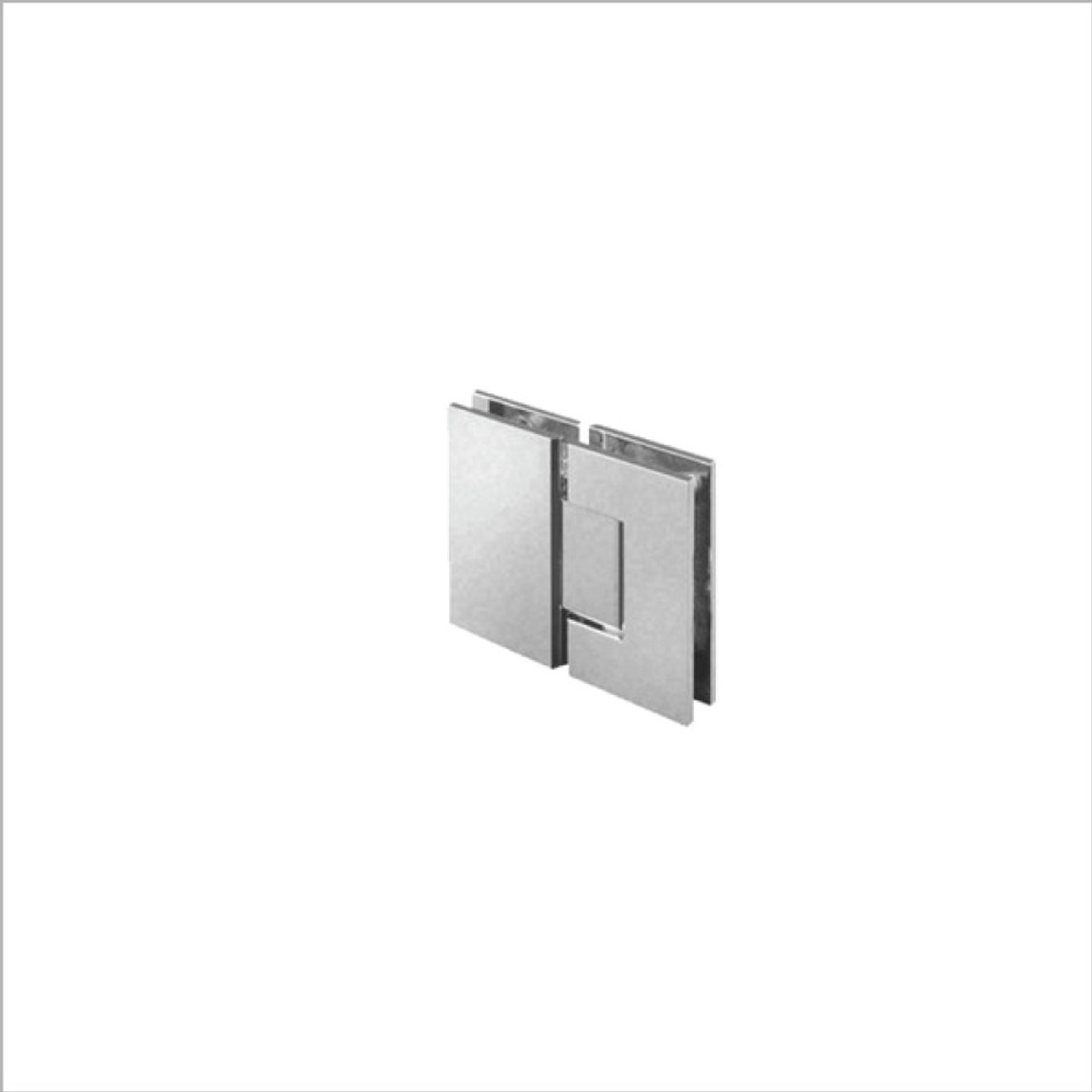

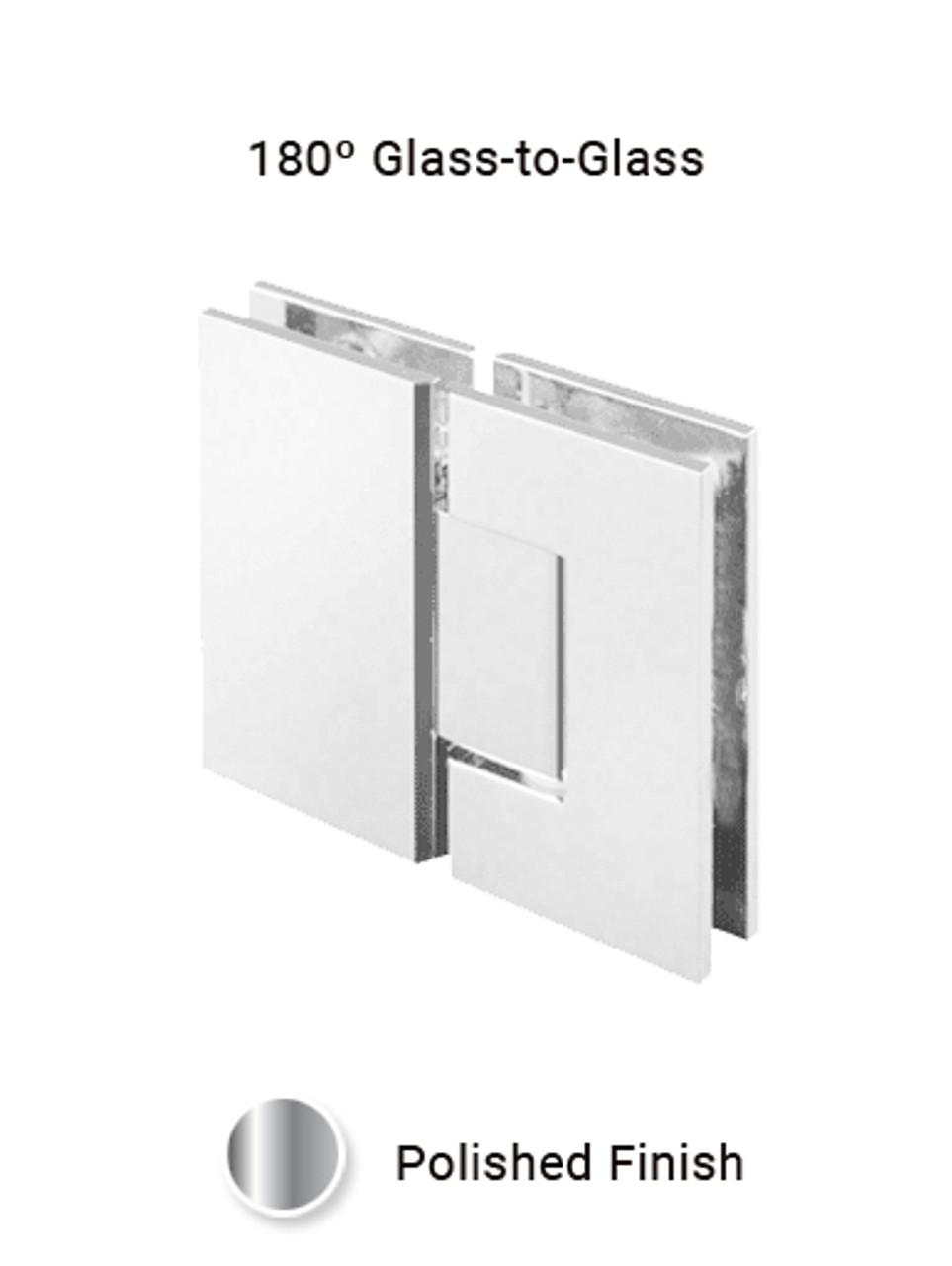

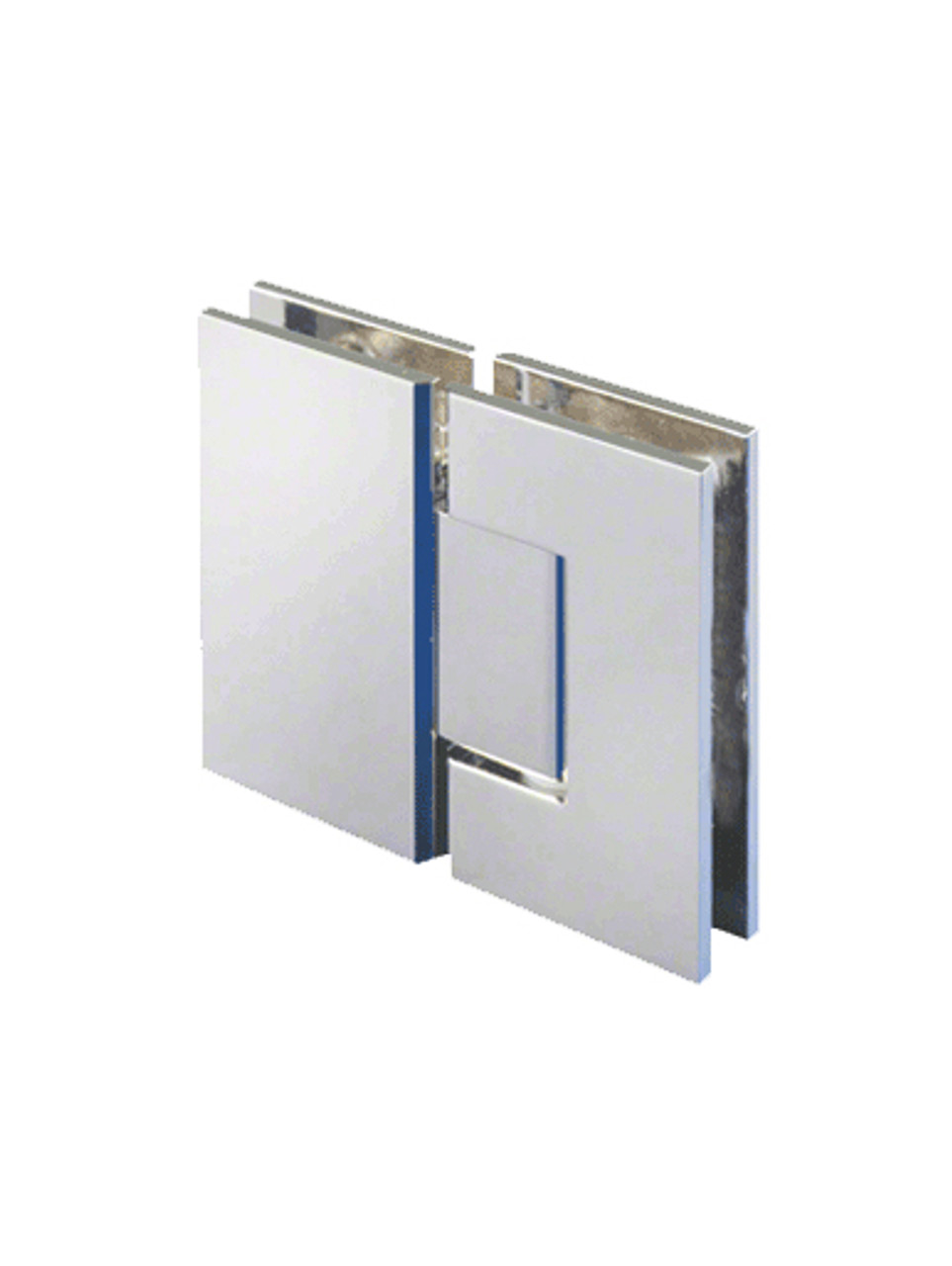

SHV92GGED 180 Degree Glass to Glass

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

• Available in Several Beautiful Finishes

• 180 Degree Glass-to-Glass Standard Model

• Use Monolithic Tempered Glass

Please click below view button for cutout

STANDARD REVERSIBLE PIVOT PIN: Each Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required -
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request
