Product Description

LAG Set B: Brushed Stainless Steel

• Improved Anti-Lift Design

• Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass

• Alloy 316 Stainless Steel Construction

The TAG LAG Wall Mount Bi-Parting Slider Kit contains all the components you will need (except the tempered glass) to complete this style of installation. This model is used in applications where you are attaching two bi-parting sliding doors to the inside face of a sufficiently reinforced wall.

PRODUCT INFORMATION:
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.

NOTE: Laminated glass cannot be used.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

VIEW OUR TEMPLATES:

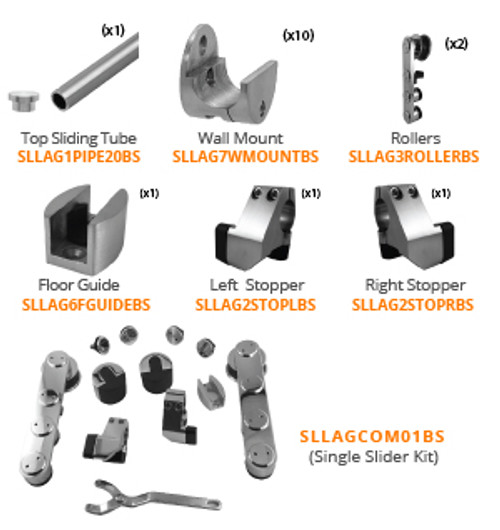

This set contains;

SLLAG1PIPE20BS - Two Top Sliding tube with End Cap 104" (2.64m) in length (x2)

SLLAG7WMOUNTBS - Ten Wall Mount Clamp in SS304 Steel (x10)

SLLAG3ROLLERBS - Two Anti lift roller

SLLAG6FGUIDEBS - One Floor Guide in SS304

SLLAG2STOPLBS - One Left Side Door Stopper in SS304

SLLAG2STOPRBS - One Right side door stopper in SS304

SLLAGCOM01BS - This set contains two rollers, one floor guide, one left and one right door stopper and  two Top mount door stop

NOTE: Each items can be purchased separately.
